Kirjeldus
FRAMESET

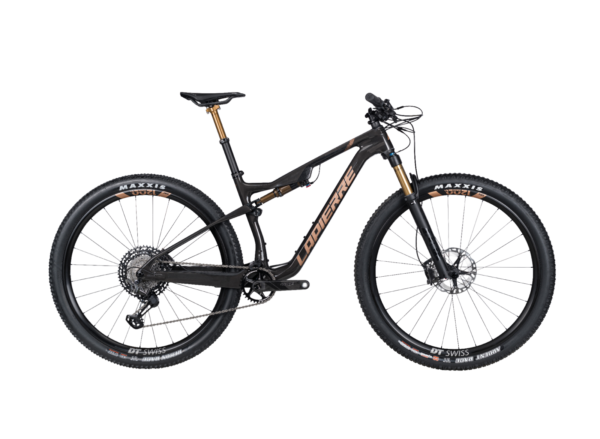

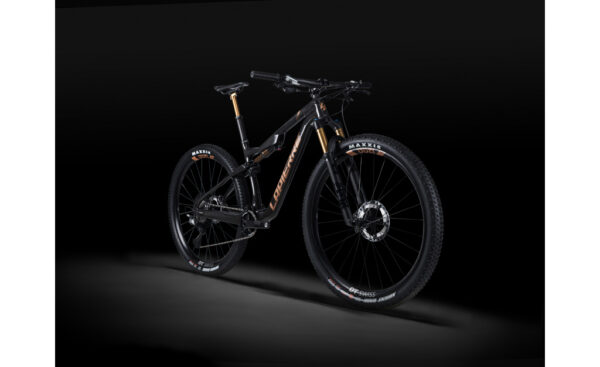

Frame: New XRM full Carbon 110mm travel (29´´) Team layup, pressfit, boost, metric, thru axle

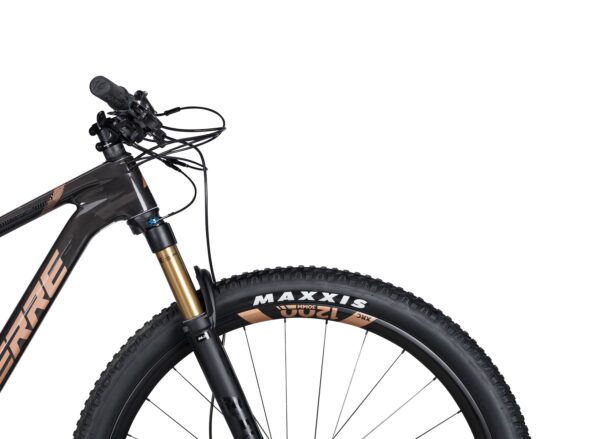

Fork: Fox 34 SC Factory-Series Float 3 Pos /remote boost FIT4 110mm travel (29´´) 44mm rake
Headset: “FSA Integrated 1.5ZS IS-2 /42/ACB hidden set ”
Rear Shock: FOX FLOAT DPS, Factory-Series Remote up, Evol LV, 210×55 (Std/Std)
DRIVETRAIN

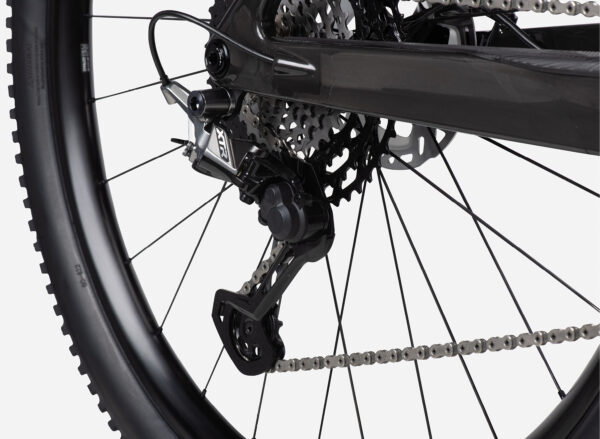

Rear Derailleur: Shimano XTR RD-M9100, 12s
Shifters: Shimano XTR 12s
Chain: Shimano XTR 12s (CN-M9100)
Crank: Race Face NEXT SL, 12S 32T 170mm (S) / 175mm (M/L/XL)
Bottom Bracket: Shimano BBMT800 Pressfit
BRAKES
Brakeset: Shimano MT800 180mm/160mm; Shimano XTR 4 pistons
WHEELS
Hubs: DT Swiss XRC 1200 Spline 29´´*30c Boost Microspline “75th” touch
Tires: Maxxis Rekon Race EXO TR 29×2.35 Rear/ Ardent Race 3C Maxxspeed EXO TR 29×2.35 front
Wheel Size: 29
COMPONENTS

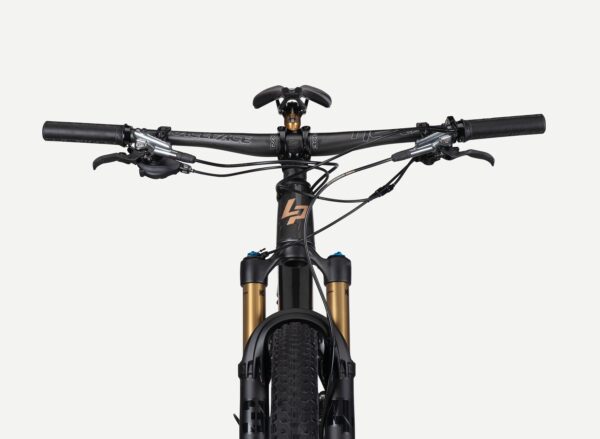

Handlebar: Race Face Next SL Carbon, Width: 740mm, Rise: 10mm, Ø: 35mm bar bore
Stem: Race Face Turbine R Ø: 35mm, L: 60mm (S/M), 70mm (L/XL)
Grips: Lapierre Fit
Saddle: PROLOGO DIMENSION NACK
Seatpost: Race Face Turbine SL Ti, Ø: 31.6mm, travel: 100mm (all sizes)
