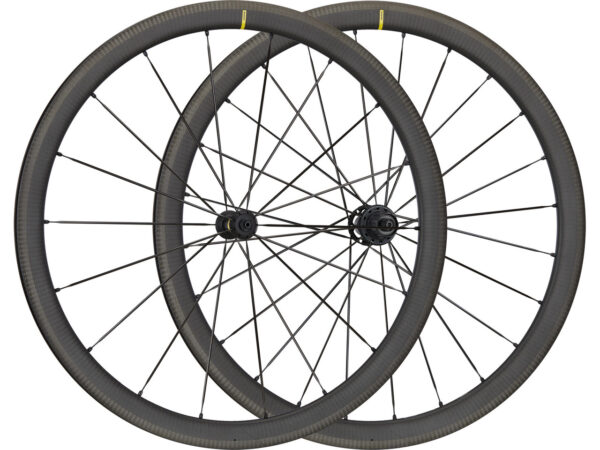

The Mavic Cosmic SLR 40 Carbon Wheelset – Light, strong, tubeless compatible

The Cosmic SLR 40 wheelset from Mavic is based on 19 mm wide and 40 mm high carbon rims optimised for rim brakes and presents itself as an extra-light, fast and strong all-rounder for all riding and racing situations. Tubeless compatibility opens up further advantages such as more puncture resistance, less rolling resistance and weight savings. Quick-release hubs with self-adjusting bearings and optimised spoke holes are used, with 18 double butted straight pull spokes at the front and 20 at the rear. Due to a special rim bed technology, tubeless rim tape is not necessary.

Specifications:
Application: Road, Triathlon & Time Trial
Wheel Size: 28″
Tyre Type: clincher tyre
Number of Spokes: 18 (front), 20 (rear)
Brake Type: rim brake
Tubeless System: UST Road Tubeless
Freehub: Shimano Road
Gearing: 8-/9-/10-/11-/12-speed

Technical Information – Rim:
Rim Flange: with hook
Dimensions (ETRTO): 19-622
Inner Width: 19 mm
Outer Width: 26 mm
Depth: 40 mm
Valve Hole Diameter: SV/Presta (6.5 mm)
Rim Material: Carbon

Technical Information – Front Hub:
Type: Mavic Infinity
Over Locknut Dimension: 9 x 100 mm quick release
Bearings: self-aligning sealed cartridge bearings
Body Material: aluminium

Technical Information – Rear Hub:
Type: Mavic Infinity
Over Locknut Dimension: 10 x 130 mm quick release
Bearings: self-aligning sealed cartridge bearings
Body Material: aluminium
Freehub Body Material: aluminium
Freehub Body: Instant Drive 360

Technical Information – Lacing:
Front Lacing Pattern: radial
Rear Lacing Pattern: Isopulse
Spoke Type: straight pull / double-butted
Spoke Size: 277 mm (front), 285 mm/266 mm (rear l/r)
Spoke Material: steel
Nipple Type: Fore, integrated
Nipple Material: aluminium

Approved For:
Weight Limit: 120 kg total weight* (rider, gear & bike)
Recommended Tyre Width: 25 – 32 mm
