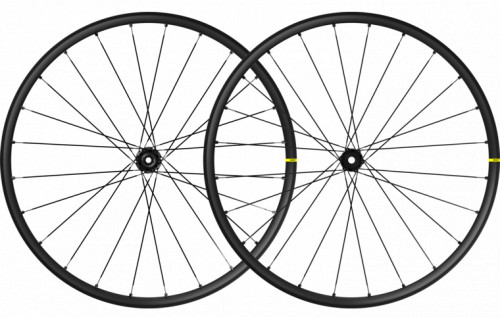

The Mavic Crossmax in 29″ is an entry-level wheelset for cross-country bikes with 6-bolt disc brakes. It is based on 25 mm wide, tubeless-compatible aluminium rims and has hubs with self-adjusting bearings. The wheels were laced with 24 contactless crossed steel spokes at the front and rear.
Specifications:
- Application:
- Cross Country
- Wheel Size:
- 29″
- Tyre Type:
- clincher tyre
- Number of Spokes:
- 24
- Brake Type:
- 6-bolt disc
- Tubeless System:
- UST Tubeless Ready
Technical Information – Rim:
- Rim Flange:
- without hook
- Dimensions (ETRTO):
- 25-622
- Inner Width:
- 25 mm
- Outer Width:
- 28 mm
- Depth:
- 21 mm
- Valve Hole Diameter:
- SV/Presta (6.5 mm)
- Rim Material:
- aluminium (Maxtal)
Technical Information – Front Hub:
- Type:
- Mavic Infinity
- Over Locknut Dimension:
- 15 x 100 mm thru-axle
- Bearings:
- self-aligning sealed cartridge bearings
- Body Material:
- Aluminium
Technical Information – Rear Hub:
- Type:
- Mavic Infinity
- Over Locknut Dimension:
- 12 x 142 mm thru-axle
- Bearings:
- self-aligning sealed cartridge bearings
- Body Material:
- Aluminium
- Freehub Body Material:
- Aluminium
- Freehub Body:
- Instant Drive 360
Technical Information – Lacing:
- Front Lacing Pattern:
- 2-cross
- Rear Lacing Pattern:
- 2-cross
- Spoke Type:
- Straight pull / Aero / Double butted
- Spoke Size:
- 296 mm
- Spoke Material:
- steel
- Nipple Type:
- self-locking
- Nipple Material:
- steel
Approved For:
- Weight Limit:
- 150 kg total weight* (rider, gear & bike)
- Recommended Tyre Width:
- 1.7 – 2.5″
* Compliance recommended by the manufacturer to extend the life of the wheels
Features:
- affordable XC wheels, stable and reliable
- perfectly airtight tubeless-ready rims
- welded rim joint (SUP) for a light rim profile
- dynamic and agile thanks to Instant Drive 360 freehub with two sprockets
- asymmetric rim design, conventional rim bores
- Infinity hub design for optimal spoke lacing with contactless crossings
- ASTM category 3: for off-road use with jumps up to 61 cm in height
Technology:
Maxtal
Made exclusively for Mavic, this lightweight and strong aluminium alloy offers a higher strength-to-weight ratio than standard 6106 aluminium. Maxtal rims are 30% stiffer and weigh less than other aluminium rims.
SUP
SUP means Soudé Usiné Process and creates a much more stable and smoother rim joint. The rim joint is welded and then milled over to achieve an even braking surface. SUP prevents any brake judder and facilitates spoking and centring of the wheel.
Infinity Hub Design
Infinity hubs from Mavic allow contactless lacing, which prevents noise development under load. At the same time, this design is lighter, stiffer and easier to maintain. Often you only need one spoke length per wheel set, so that an optimal spare parts supply is given.
QRM Auto
QRM Auto stands for Qualité de Roulements Mavic Auto, and is the latest bearing innovation from Mavic. These cartridge bearings with C3 internal clearance are double sealed. Their bearing clearance is automatically adjusted to guarantee smooth running without any play at all times.
Instant Drive 360
The Instant Drive 360 freehub system is super light and ensures fast power transfer with an engagement angle of only 9° (road) or 15° (MTB). A large, non-contact rubber seal reduces friction.
