The Ksyrium 30 Disc is an entry-level model for high-level race performance with a new UST Road Tubeless system for a smoother ride and improved puncture resistance. The 30 mm deep rim optimizes aero performance and stability in crosswinds, while the alloy rim offers a balance between stiffness, strength and weight by carefully balancing the rim wall thickness.

The straight spokes are connected to high-quality Infinity hubs, which guarantees optimum stiffness and durability. The Instant Drive 360 ratchet freehub system ensures fast activation and low friction.

---

Features – Mavic Ksyrium 30 Disc wheel set

• ID360 freewheel technology
• Infinity hub platform with stiffer axle, durable bearings and new design

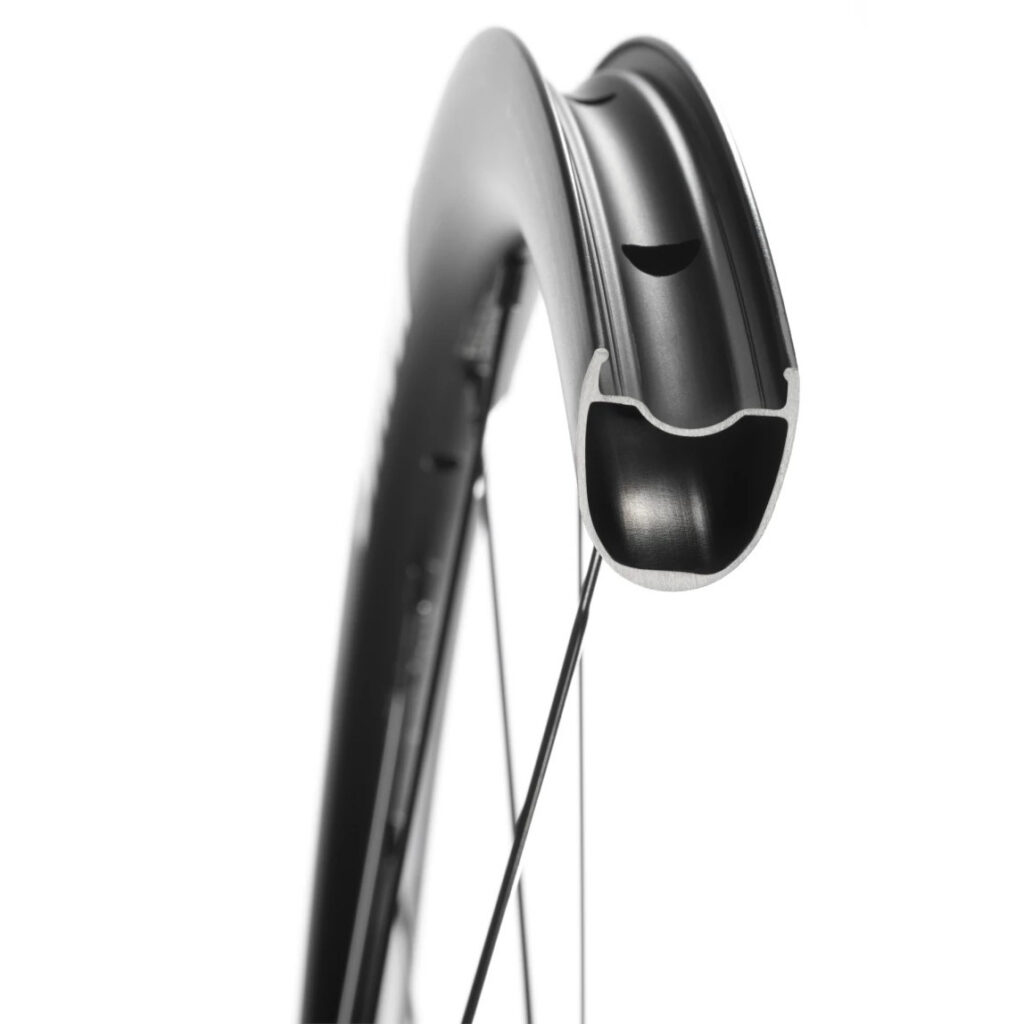

• Lightweight and aerodynamic rims 30 mm deep, 19 mm wide (internal)
• Light welded rim
• Traditional drilling
• Double butted flat spokes
• Refined UST rim bed that facilitates tire mounting
• Sophisticated tubeless technology ensures a faster and smoother ride while being easy to install and maintain

Product features

• Range of use: Road bike
• Model: Ksyrium 30 Disc
• Wheel size: 28″
• ETRTO: 622×19
• Rim type: Clincher (folding/wire tyres)
• Tubeless Ready: Yes

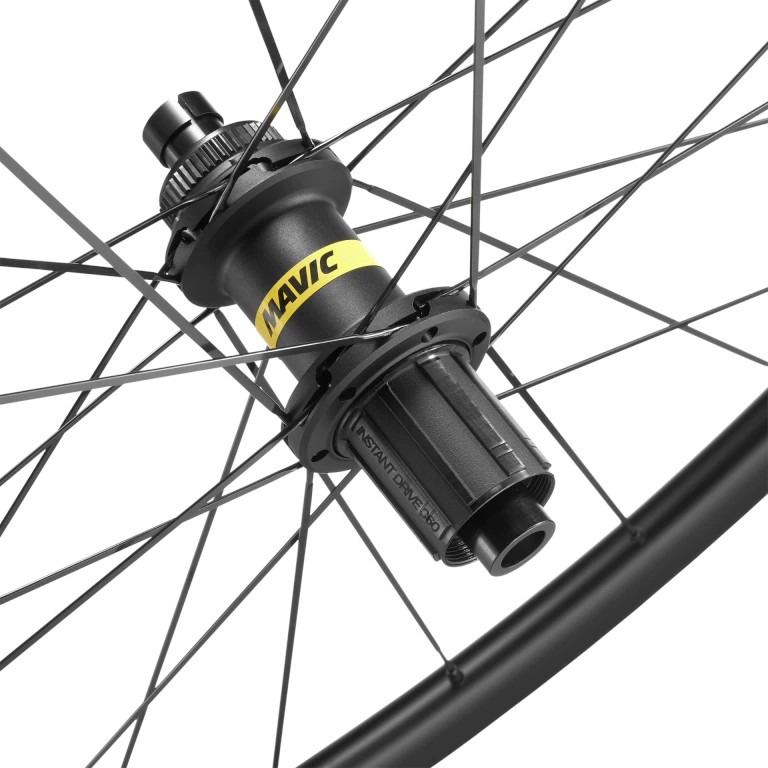

• Hub: Infinity Hub
• Freewheel technology: Instant Drive 360
• Freewheel: Shimano HG road
• Bearings: Self-sealing industrial bearings (QRM Auto)
• Internal rim width: 19 mm
• Spoke type: straight, extra-flat, constricted, antirotation
• Spokes: 24, crossed 2
• Brake type: Disc
• Brake system: Disc Center-Lock
• Recommended tyres: 25 mm to 32 mm
• Valve hole: Presta / SV Ø 6.5 mm
• ASTM category: 2 – for use on roads and off-road with jumps up to a height of 15cm
• Max. System weight: 120 kg (rider + bike + equipment)
• Hub axle system:
  • Front wheel 12 x 100 mm thru axle
  • Rear wheel 12 x 142 mm thru axle

Material

• Rim: Maxtal Aluminium
• Hub shell: Aluminium
• Freehub: Steel
• Spokes: Steel
• Nipples: Steel

Weight

• approx. 1796 g (manufacturer information)
