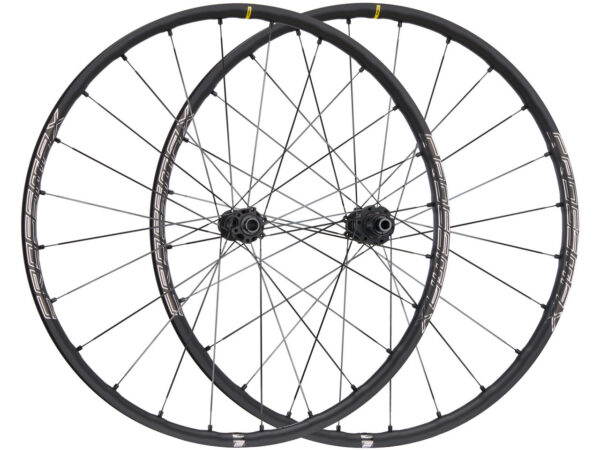

The Mavic Crossmax SL S Disc 6-Bolt Wheelset – Fast, robust and very lightweight

The Mavic Crossmax SL S is a 29″ cross-country wheelset for 6-bolt disc brakes with 25 mm wide aluminium rims, which have been manufactured with a lot of attention to weight savings. Add to that quick acceleration, precise handling and durability. The wheels feature Boost hubs with self-aligning bearings and optimised spoke holes, with double butted straight pull spokes. Innovative rim bed technology eliminates the need for tubeless rim tape.

Specifications:
Application: Cross Country
Wheel Size: 29″
Tyre Type: clincher tyre
Number of Spokes: 24
Brake Type: 6-bolt disc
Wheel Standard: Boost
Tubeless System: UST Tubeless Ready
Freehub: SRAM XD
Gearing: 11-/12-speed

Technical Information – Rim:
Rim Flange: without hook
Dimensions (ETRTO): 25-622
Inner Width: 25 mm
Outer Width: 28.2 mm
Depth: 19.6 mm
Valve Hole Diameter: SV/Presta (6.5 mm)
Rim Material: Aluminium (S6000, Maxtal)

Technical Information – Front Hub:
Type: Mavic Infinity
Over Locknut Dimension: 15 x 110 mm thru-axle
Bearings: self-aligning sealed cartridge bearings
Body Material: Aluminium

Technical Information – Rear Hub:
Type: Mavic Infinity
Over Locknut Dimension: 12 x 148 mm thru-axle
Bearings: self-aligning sealed cartridge bearings
Body Material: Aluminium
Freehub Body Material: Aluminium
Freehub Body: Instant Drive 360

Technical Information – Lacing:
Front Lacing Pattern: 2-cross
Rear Lacing Pattern: 2-cross
Spoke Type: straight pull / double-butted
Spoke Size: 298 mm
Spoke Material: steel
Nipple Type: Fore, integrated
Nipple Material: Aluminium

Approved For:
Weight Limit: 120 kg total weight* (rider, gear & bike)
Recommended Tyre Width: 2.0 – 3.0″ (50 – 76 mm)
