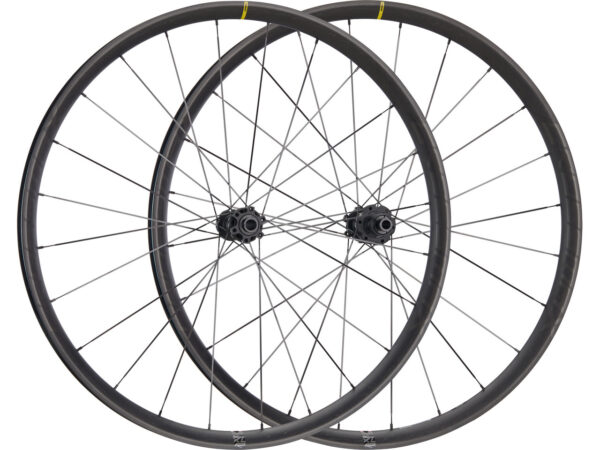

The Mavic Crossmax XL R is a 29″ all-mountain wheelset for 6-bolt disc brakes based on 30 mm wide carbon rims made of UD² laminate. This gives it a different look and makes it even more durable than the previous model. The wheels score with their versatility and riding qualities. Boost hubs with self-adjusting bearings and double-butted, contactless crossed straight pull spokes are used.

Specifications:
Application: All Mountain, Enduro
Freehub: Shimano MTB
Gearing: 8-/9-/10-/11-speed
Wheel Size: 29″
Tyre Type: clincher tyre
Number of Spokes: 24
Brake Type: Disc 6-bolt (Boost)
Wheel Standard: Boost
Tubeless System: UST Tubeless Ready

Technical Information – Rim:
Rim Flange: without hook
Dimensions (ETRTO): 30-622
Inner Width: 30 mm
Outer Width:35 mm
Depth: 25 mm
Valve Hole Diameter: SV/Presta (6.5 mm)
Rim Material: Carbon (UD²)

Technical Information – Front Hub:
Type: Mavic Infinity
Over Locknut Dimension: 15 x 110 mm thru-axle
Bearings: self-aligning sealed cartridge bearings
Body Material: Aluminium

Technical Information – Rear Hub:
Type: Mavic Infinity
Over Locknut Dimension: 12 x 148 mm thru-axle
Bearings: self-aligning sealed cartridge bearings
Body Material: Aluminium
Freehub Body Material: Aluminium
Freehub Body: Instant Drive 360

Technical Information – Lacing:
Front Lacing Pattern: 2-cross
Rear Lacing Pattern: 2-cross
Spoke Type: Straight pull / Aero / Double butted
Spoke Size: 293 mm
Spoke Material: steel
Nipple Type: self-locking
Nipple Material: Aluminium

Approved For:
Weight Limit: 150 kg total weight* (rider, gear & bike)
Recommended Tyre Width: 2.3 – 2.6″
