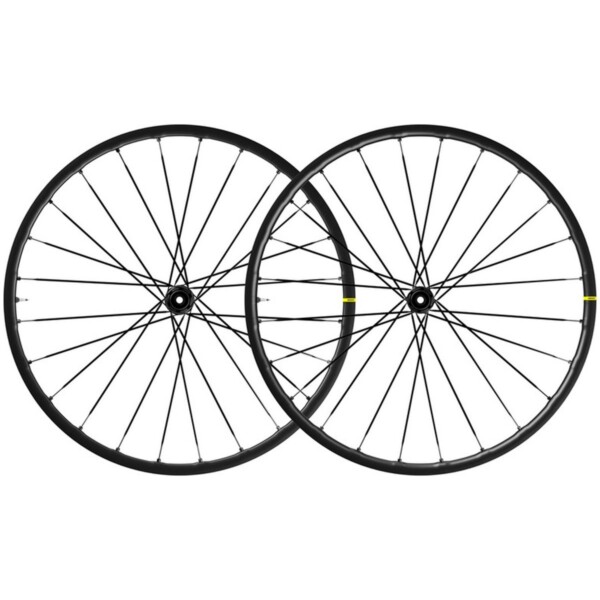

The Mavic Allroad S Wheelset – A reliable partner for demanding missions

The Mavic Allroad S is a Disc Center Lock 28″ aluminium wheelset for gravel riders, bikepackers and commuters that scores with reliability and ease of use. It is based on tubeless-compatible, 22 mm wide rims as well as thru-axle hubs with self-adjusting bearings and optimised spoke holes. In addition, 24 double butted straight pull spokes are used at the front and rear. Thanks to a special rim bed technology, tubeless rim tape is not necessary.

Specifications:

Application: Gravel, City & Touring, Road
Wheel Size: 28″
Tyre Type: clincher tyre
Number of Spokes: 24
Brake Type: Center Lock Disc
Tubeless System: UST Road Tubeless
Technical Information – Rim:

Rim Flange: hookless
Dimensions (ETRTO): 22-622
Inner Width: 22 mm
Outer Width: 24.9 mm
Depth: 21 mm
Valve Hole Diameter: SV/Presta (6.5 mm)
Rim Material: aluminium (Maxtal)
Technical Information – Front Hub:

Type: Mavic Infinity
Over Locknut Dimension: 12 x 100 mm thru-axle
Bearings: self-aligning sealed cartridge bearings
Body Material: aluminium
Technical Information – Rear Hub:

Type: Mavic Infinity
Over Locknut Dimension: 12 x 142 mm thru-axle
Bearings: self-aligning sealed cartridge bearings
Body Material: aluminium
Freehub Body Material: aluminium
Freehub Body: Instant Drive 360
Technical Information – Lacing:

Front Lacing Pattern: 2-cross
Rear Lacing Pattern: 2-cross
Spoke Type: straight pull / double-butted
Spoke Size: 298 mm
Spoke Material: steel
Nipple Type: Fore, integrated
Nipple Material: aluminium
Approved For:

Weight Limit: 120 kg total weight* (rider, gear & bike)
Air Pressure (max.): see specifications on wheel and tyre (if different take the lower value)
Recommended Tyre Width: 28 – 64 mm (1.1 – 2.5″ )
Tyre Type: Due to its hookless rims, the Allroad S is only approved for use with UST tubeless tyres and tubular wired tyres. Follow the tyre manufacturer´s instructions for use.
Freehub: Shimano
RoadGearing: 8-/9-/10-/11-/12-speed
Note: The assembly of 8-/9-/10-speed cassettes on a Shimano Road Rotor requires a 1.85 mm spacer.
Shimano: 1765 g

Features:

smooth, fast ride on rough roads, gravel and dirt
light and durable
laterally stiff and vertically compliant for dynamic ride quality
revised rim bed shape for easier tyre fitting and quicker tyre changing
rim profile optimised for disc brakes
rim joint welded (SUP)
Infinity hub design for optimal lacing
aluminium axles
front can optionally be converted to quick release with separately available adapters, conversion to 15 x 100 mm thru-axle possible by replacing the complete axle
rear can optionally be converted to quick release by replacing the axle with V2373401 plus separately available adapters
rear can optionally be converted to 12 x 135 mm thru-axle by replacing the axle with V2373401 plus a separate adapter
extra-light Shimano freehub body optionally available
no rim tape required thanks to Fore technology
ASTM category 2: for use on roads, maintained dirt roads and gravel roads (on Touring and Cross Country bikes) with jumps up to a height of 15 cm
