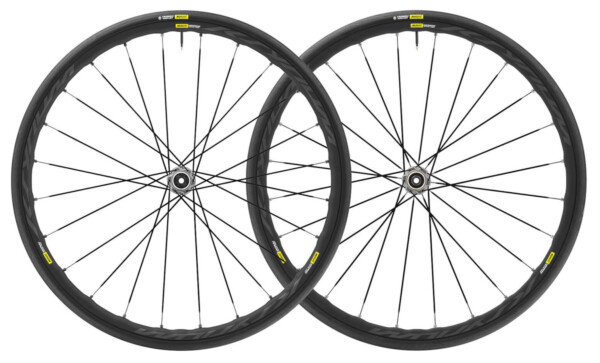

The Mavic Ksyrium Elite UST Disc Centre Lock Wheelset is a favourite for everyday road training and racing. A versatile wheelset that is lightweight with a dynamic ride quality. This wheelset also boasts UST Road Tubeless technology.

Compatibility:

Rear axle: 12mm thru axle, convertible to Quick Release with optional adapters (not available in Germany)
Front axle: convertible from 12mm thru axle to quick release or 15mm thru axle with optional adapters
Freewheel: Shimano/Sram, convertible to Campagnolo and XD-R with optional driver bodies

Weight:

Tyre 700×25: 210 grams
Pair without tyre: 1670 grams
Front without tyre: 770 grams
Rear without tyre: 900 grams

Hubs:

Front : adjustable sealed cartridge bearings (QRM+), Rear : auto adjust sealed cartridge bearings (QRM Auto)
Freewheel: Instant Drive 360
Front and rear bodies: aluminum
Axle material: aluminum

Intended Use:

For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels don´t exceed 120kg, bike included
ASTM CATEGORY 2 : road and offroad with jumps less than 15cm
Max. Pressure tubeless: 25mm 6 bars – 87 PSI, 28mm 5 bars – 70 PSI. Max pressure tubetype: 25/28mm 7,7 bars – 110 PSI
Recommended tyre sizes: 25 to 32 mm

Rims:

Height: 22 mm
ETRTO size: 622x19TC Road
Use with Mavic Tubeless Tape
Weight reduction: ISM 4D
Internal width: 19 mm
Disc brake specific profile
Valve hole diameter: 6.5 mm
Tyre: UST Tubeless and tubetype
Drilling: Fore
Joint: SUP
Material: Maxtal

Spokes:

Material: steel
Shape: straight pull, bladed
Lacing: front crossed 2, rear Isopulse
Nipples: Fore integrated aluminum
Count: 24 front and rear

Tyre:

Front and Rear Tread: 11 Storm single compound
Yksion Pro UST
UST Tubeless Ready
Dimension: 25-622 (700x25c)
Breaker: Polyamide, from bead to bead
Casing: 127 TPI

Versions:

Disc standard : Center Lock(R)
Color: Black only
